Beating a Dead Horse

My last three posts have used the same theme – getting some quotes from a third-party service, caching them, serving them from the cache and displaying them. Instead of just leaving these pieces as little more than a proof-of-concept, I thought I’d add another couple posts on this theme to build out a functioning web app. This will let me continue to work on my TDD and add BDD tests with Spock. If I don’t get too bored or distracted, I would also like to go through the exercises of testing the front end with Selenium (maybe with GEB on top).

[I spent some time thinking about building this app in a real-world adaptation of Uncle Bob’s Clean Architecture, but I got bogged down with the optimal project structure and with identifying which ideas of Bob’s would be confusing/ignored by support team programmers. I’m going to let it roll around in my head a little longer and tackle that in a future post, so this project will adhere to more conventional patterns, but it will make use of some of Bob’s ideas.]

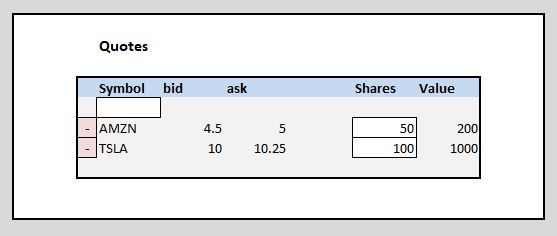

Mock of the web page

Here’s a rough idea of what I am planning to build.

Quotes Front-End Mock

It will handle three actions:

  1. Add a security (by entering a symbol in the symbol column)
  2. Remove a security (by clicking the [-] button)
  3. Calculate value per shares (by entering the number of shares)

First, the Service:

Use Cases

  • Get Quote for a given Symbol
  • Get All Securities we’re following
  • Get Quotes for Each Security in our List
  • Add Security to our List
  • Delete a Security from our List
  • Calculate Value of given Share Quantity

Spring Starter Project… portfolio-svc
Start a new spring boot project with the following:

  • web
  • jpa
  • redis
  • h2
  • actuator
  • lombok

Add Spock and Jacoco
I want to run my unit tests with jUnit, but I plan to test my use cases with Spock, so we need to add its dependencies to our gradle.build. [I am borrowing the dependencies from Geoffroy Warin’s spring-spock-mvc github repo.]

Spock requires Groovy, so I also added the Eclipse Groovy Development Tools Plug-in via the Eclipse MarketPlace [From Eclipse IDE: Help -> Eclipse MarketPlace -> Find: groovy. Install Groovy Development Tools.].

So that we can measure our code coverage, I’m also adding jacoco and a gradle task called jacocoTestReport.

gradle.build

buildscript {
	ext {
		springBootVersion = '2.0.2.RELEASE'
	}
	repositories {
		mavenCentral()
	}
	dependencies {
		classpath("org.springframework.boot:spring-boot-gradle-plugin:${springBootVersion}")
	}
}

apply plugin: 'java'
apply plugin: 'eclipse'
apply plugin: 'groovy'
apply plugin: 'jacoco'
apply plugin: 'org.springframework.boot'
apply plugin: 'io.spring.dependency-management'

group = 'com.scotthensen.portfolio'
version = '0.0.1-SNAPSHOT'
sourceCompatibility = 1.8

repositories {
	mavenCentral()
}


dependencies {
	// Groovy
	compile 'org.codehaus.groovy:groovy-all:2.4.7'

	// Spring
	compile 'org.springframework.boot:spring-boot-starter-actuator'
	compile 'org.springframework.boot:spring-boot-starter-data-jpa'
	//compile 'org.springframework.boot:spring-boot-starter-data-redis'
	compile 'org.springframework.boot:spring-boot-starter-web'

	// Other
	compileOnly 'org.projectlombok:lombok'

	// Test
	testCompile 'org.springframework.boot:spring-boot-starter-test'
	testCompile 'org.spockframework:spock-core:1.1-groovy-2.4'
	testCompile 'org.spockframework:spock-spring:1.1-groovy-2.4'
	testCompile 'com.h2database:h2'
	testRuntime 'cglib:cglib-nodep:3.2.4'
}

jacoco {
    toolVersion = "0.7.9"
    reportsDir = file("$buildDir/reports/tests/jacoco")
}
jacocoTestReport {
    reports {
        xml.enabled false
        csv.enabled false
        html.destination file("${buildDir}/reports/tests/jacoco")
    }
}

Build a test for Quote Entity

package com.scotthensen.portfolio.svc.tests.unit.quote;

import java.math.BigDecimal;

import org.assertj.core.api.Assertions;
import org.junit.Test;

import com.scotthensen.portfolio.svc.quote.Quote;

public class QuoteTest {

	@Test
	public void givenValidArgs_whenAllArgConstructorCalled_thenQuoteIsConstructed() {

		// Given valid arguments
		String     teslaSym = "TSLA";
		BigDecimal teslaBid = new BigDecimal("100.50");
		BigDecimal teslaAsk = new BigDecimal("101.50");

		// When AllArgsConstructor executes
		Quote p = new Quote(null, teslaSym, teslaBid, teslaAsk);

		// Then a quote with the given data is constructed
		Assertions.assertThat(p.getSymbol()).isEqualTo(teslaSym);
		Assertions.assertThat(p.getBid()).isEqualByComparingTo(teslaBid);
		Assertions.assertThat(p.getAsk()).isEqualTo(teslaAsk);
	}
}

Make it pass

package com.scotthensen.portfolio.svc.quote;

import java.math.BigDecimal;

import javax.persistence.Entity;
import javax.persistence.GeneratedValue;
import javax.persistence.GenerationType;
import javax.persistence.Id;

import lombok.AccessLevel;
import lombok.AllArgsConstructor;
import lombok.Data;
import lombok.NoArgsConstructor;

@Data
@Entity
@AllArgsConstructor
@NoArgsConstructor(access=AccessLevel.PRIVATE, force=true)
public class Quote
{
	@Id
	@GeneratedValue(strategy=GenerationType.AUTO)
	private Long id;

	private String symbol;
	private BigDecimal bid;
	private BigDecimal ask;
}

Build a helper class to generate test quotes
I don’t want to rebuild my test quotes, so I’m going to use a little helper class to return two standard quotes.

package com.scotthensen.portfolio.svc.tests.helpers;

import java.math.BigDecimal;
import java.util.ArrayList;
import java.util.List;

import com.scotthensen.portfolio.svc.quote.Quote;


public class QuoteHelper {

	private String teslaSym     = "TSLA";
	private BigDecimal teslaBid = new BigDecimal("100.50");
	private BigDecimal teslaAsk = new BigDecimal("101.50");

	private String     samSym   = "SAM";
    private	BigDecimal samBid   = new BigDecimal("200.50");
	private BigDecimal samAsk   = new BigDecimal("201.50");

	public Quote getQuote1()
	{
		return new Quote(null, teslaSym, teslaBid, teslaAsk);
	}

	public Quote getQuote2()
	{
		return new Quote(null, samSym, samBid, samAsk);
	}
	public List<Quote> getQuotes()
	{
		List<Quote> quotes = new ArrayList<>();
		quotes.add(new Quote(null, teslaSym, teslaBid, teslaAsk));
		quotes.add(new Quote(null, samSym, samBid, samAsk));
		return quotes;
	}
}

Build a test for Portfolio Entity

package com.scotthensen.portfolio.svc.tests.unit.portfolio;


import java.util.List;

import org.assertj.core.api.Assertions;
import org.junit.Test;

import com.scotthensen.portfolio.svc.portfolio.Portfolio;
import com.scotthensen.portfolio.svc.quote.Quote;
import com.scotthensen.portfolio.svc.tests.helpers.QuoteHelper;

public class PortfolioTest {

	@Test
	public void givenValidArgs_whenAllArgConstructorCalled_thenPortfolioIsConstructed() {

		// Given valid arguments
		Long   portfolioId   = 1L;
		String portfolioName = "test portfolio";
		QuoteHelper helper   = new QuoteHelper();
		List<Quote> quotes   = helper.getQuotes();

		// When AllArgsConstructor executes
		Portfolio p = new Portfolio(portfolioId, portfolioName, quotes);

		// Then a portfolio with Tesla and Sam Adams is constructed
		Assertions.assertThat(p.getId()).isEqualTo(portfolioId);
		Assertions.assertThat(p.getPortfolioName()).isEqualTo(portfolioName);
		Assertions.assertThat(p.getQuotes()).containsAll(quotes);
	}

}

Make it pass

package com.scotthensen.portfolio.svc.portfolio;

import java.util.List;

import javax.persistence.Entity;
import javax.persistence.GeneratedValue;
import javax.persistence.GenerationType;
import javax.persistence.Id;
import javax.persistence.ManyToMany;
import javax.validation.constraints.NotNull;

import com.scotthensen.portfolio.svc.quote.Quote;

import lombok.AccessLevel;
import lombok.AllArgsConstructor;
import lombok.Data;
import lombok.NoArgsConstructor;

@Data
@Entity
@NoArgsConstructor(access=AccessLevel.PRIVATE, force=true)
@AllArgsConstructor
public class Portfolio
{
	@Id
	@GeneratedValue(strategy=GenerationType.AUTO)
	private Long id;

	@NotNull
	private String portfolioName;

	@ManyToMany(targetEntity=Quote.class)
	private List<Quote> quotes;
}

Write a JPA Test for Portfolio

package com.scotthensen.portfolio.svc.tests.integ.portfolio;

import java.util.ArrayList;
import java.util.List;

import org.assertj.core.api.Assertions;
import org.junit.Test;
import org.junit.runner.RunWith;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.boot.test.autoconfigure.orm.jpa.DataJpaTest;
import org.springframework.boot.test.autoconfigure.orm.jpa.TestEntityManager;
import org.springframework.test.context.junit4.SpringRunner;

import com.scotthensen.portfolio.svc.portfolio.Portfolio;
import com.scotthensen.portfolio.svc.quote.Quote;
import com.scotthensen.portfolio.svc.tests.helpers.QuoteHelper;

@DataJpaTest
@RunWith(SpringRunner.class)
public class PortfolioJpaTest {

	@Autowired
	private TestEntityManager testEntityManager;

	@Test
	public void givenValidPortfolio_whenJpaPersist_thenPortfolioPersists()
	{
		String portfolioName = "Test Porfolio";
		QuoteHelper helper   = new QuoteHelper();
		Quote  q1 = this.testEntityManager.persist(helper.getQuote1());
		Quote  q2 = this.testEntityManager.persist(helper.getQuote2());
		List<Quote> quotes   = new ArrayList<Quote>();
		quotes.add(q1);
		quotes.add(q2);

		Portfolio p  = this.testEntityManager.persistAndFlush(new Portfolio(null,portfolioName,quotes));

		Assertions.assertThat(p.getId()).isNotNull();
		Assertions.assertThat(p.getPortfolioName()).isEqualTo(portfolioName);
		Assertions.assertThat(p.getQuotes()).containsAll(quotes);
	}
}

Write a Repository Test for Portfolio

package com.scotthensen.portfolio.svc.tests.integ.portfolio;

import java.util.ArrayList;
import java.util.List;

import org.assertj.core.api.Assertions;
import org.junit.Test;
import org.junit.runner.RunWith;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.boot.test.autoconfigure.orm.jpa.DataJpaTest;
import org.springframework.test.context.junit4.SpringRunner;

import com.scotthensen.portfolio.svc.portfolio.PorfolioRepository;
import com.scotthensen.portfolio.svc.portfolio.Portfolio;
import com.scotthensen.portfolio.svc.quote.Quote;
import com.scotthensen.portfolio.svc.tests.helpers.QuoteHelper;

@DataJpaTest
@RunWith(SpringRunner.class)
public class PortfolioRepositoryTest
{
	@Autowired
	private PorfolioRepository repository;

	@Test
	public void givenValidPortfolio_whenSave_thenPortfolioPersists()
	{
		String portfolioName = "test porfolio";
		QuoteHelper helper = new QuoteHelper();
		List<Quote> quotes = new ArrayList<Quote>();
		quotes.add(helper.getQuote1());
		quotes.add(helper.getQuote2());

		Portfolio p = repository.save(new Portfolio(null, portfolioName, quotes));

		Assertions.assertThat(p.getId()).isNotNull();
		Assertions.assertThat(p.getPortfolioName()).isEqualTo(portfolioName);
		Assertions.assertThat(p.getQuotes().containsAll(quotes));
	}
}

Make the Portfolio JPA/Repo tests pass

package com.scotthensen.portfolio.svc.portfolio;

import org.springframework.data.jpa.repository.JpaRepository;
import org.springframework.stereotype.Repository;

@Repository
public interface PorfolioRepository extends JpaRepository<Portfolio, Long>{

}

Write a JPA Test for Quote

package com.scotthensen.portfolio.svc.tests.integ.quote;

import org.assertj.core.api.Assertions;
import org.junit.Test;
import org.junit.runner.RunWith;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.boot.test.autoconfigure.orm.jpa.DataJpaTest;
import org.springframework.boot.test.autoconfigure.orm.jpa.TestEntityManager;
import org.springframework.test.context.junit4.SpringRunner;

import com.scotthensen.portfolio.svc.quote.Quote;
import com.scotthensen.portfolio.svc.tests.helpers.QuoteHelper;

@DataJpaTest
@RunWith(SpringRunner.class)
public class QuoteJpaTest {

	@Autowired
	private TestEntityManager testEntityManager;

	@Test
	public void givenValidQuote_whenJpaPersist_thenPersistsQuote()
	{
		QuoteHelper helper = new QuoteHelper();
		Quote q1 = helper.getQuote1();

		Quote q = this.testEntityManager.persistAndFlush(q1);

		Assertions.assertThat(q.getSymbol()).isEqualTo(q1.getSymbol());
		Assertions.assertThat(q.getBid()).isEqualTo(q1.getBid());
		Assertions.assertThat(q.getAsk()).isEqualTo(q1.getAsk());
	}
}

Write a Repository Test for Quote

package com.scotthensen.portfolio.svc.tests.integ.quote;

import org.assertj.core.api.Assertions;
import org.junit.Test;
import org.junit.runner.RunWith;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.boot.test.autoconfigure.orm.jpa.DataJpaTest;
import org.springframework.test.context.junit4.SpringRunner;

import com.scotthensen.portfolio.svc.quote.Quote;
import com.scotthensen.portfolio.svc.quote.QuoteRepository;
import com.scotthensen.portfolio.svc.tests.helpers.QuoteHelper;

@DataJpaTest
@RunWith(SpringRunner.class)
public class QuoteRepositoryTest
{
	@Autowired
	private QuoteRepository repository;

	@Test
	public void givenValidQuote_whenSave_thenQuotePersists()
	{
		QuoteHelper helper = new QuoteHelper();
		Quote q1 = helper.getQuote1();

		Quote q = repository.save(q1);

		Assertions.assertThat(q.getSymbol()).isEqualTo(q1.getSymbol());
		Assertions.assertThat(q.getAsk()).isEqualTo(q1.getAsk());
		Assertions.assertThat(q.getBid()).isEqualTo(q1.getBid());
	}
}

Make the Quote JPA/Repo tests pass


package com.scotthensen.portfolio.svc.quote;

import org.springframework.data.jpa.repository.JpaRepository;
import org.springframework.stereotype.Repository;

@Repository
public interface QuoteRepository extends JpaRepository<Quote, Long>{

}

Build the Service’s Use Cases

Up to this point, I’ve really just slapped together classes based on my last post. Now, I will add the first use case: get some quotes.

Here, I will depart from the standard Spring project structure, and group all of the classes used for this use case into one package. I imagine that, if the use case involved more classes, or multiple implementations, we could justify breaking the package into smaller pieces, but I am just going to throw them all into one bucket. This is the ‘screaming architecture’ that Uncle Bob refers to in his vision for clean architecture. [Note: I am just borrowing some of his ideas, I am not using all of the injections and interfaces that he recommends.]

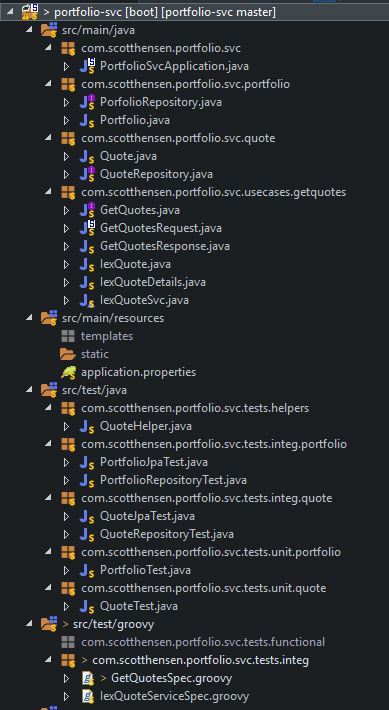

To give you an idea of how I am organizing the components, here is a view of the project structure after writing one use case (code below).

Project Structure with one use case

Project Structure

Here is the spec for that use case, written in BDD statements:

  • Given a valid symbol (TSLA),
    When a request for a quote is made,
    Then the quote is returned.

  • Given an invalid symbol (xxx),
    When a request for a quote is made,
    Then an Http 404 (not found) is returned in the response.

  • Given a mix of valid and invalid symbols (TSLA, xxx, SAM),
    When a request for a quote is made,
    Then the quotes are returned for the valid symbols (TSLA and SAM) are returned in alphabetical order.

Write a test (a ‘spec’) for the get-quotes use case

package com.scotthensen.portfolio.svc.tests.integ

import org.springframework.beans.factory.annotation.Autowired
import org.springframework.http.HttpStatus
import org.springframework.web.client.HttpClientErrorException

import com.scotthensen.portfolio.svc.usecases.getquotes.GetQuotes
import com.scotthensen.portfolio.svc.usecases.getquotes.IexQuoteSvc
import com.scotthensen.portfolio.svc.usecases.getquotes.GetQuotesRequest
import com.scotthensen.portfolio.svc.usecases.getquotes.GetQuotesResponse

import spock.lang.Narrative
import spock.lang.Shared
import spock.lang.Specification
import spock.lang.Stepwise
import spock.lang.Title

@Narrative(""" The IEX Quote service is called to get a list quotes.""")
@Title('Integration test with IEX Quote service')

@Stepwise
class GetQuotesSpec extends Specification {

	@Shared
	def GetQuotes quotes = new IexQuoteSvc();
	@Shared
	def GetQuotesResponse quotesResponse = new GetQuotesResponse();

	def List<String> symbols = new ArrayList<>();

	def "Get a quote for a valid symbol"() {

		given: "a valid symbol (TSLA)"
		symbols.add("TSLA")
		GetQuotesRequest quotesRequest = new GetQuotesRequest(symbols);

		when: "a request for a quote is made"
		quotesResponse = quotes.getQuotes(quotesRequest);

		then: "the quote is returned"
		quotesResponse.getQuotes().get(0).getSymbol() == "TSLA"
	}
	def "Get a quote for an invalid symbol"() {

		given: "an invalid symbol (xxx)"
		symbols.add("xxx")
		GetQuotesRequest quotesRequest = new GetQuotesRequest(symbols);

		when: "a request for a quote is made"
		quotesResponse = quotes.getQuotes(quotesRequest);

		then: "an Http 404 (not found) is returned in the response"
		quotesResponse.getHttpException().getStatusCode() == HttpStatus.NOT_FOUND
		quotesResponse.getQuotes() == null
	}
	def "Get a quote for a missing symbol"() {

		given: "a missing symbol"
		GetQuotesRequest quotesRequest = new GetQuotesRequest();

		when: "a request for a quote is made"
		quotesResponse = quotes.getQuotes(quotesRequest);

		then: "an HttpClientErrorException is returned in the response"
		quotesResponse.getHttpException().getStatusCode() == HttpStatus.BAD_REQUEST
		quotesResponse.getQuotes() == null
	}
	def "Get multiple quotes; some are valid symbols and some aren't"() {

		given: "a mix of valid and invalid symbols (TSLA, xxx, SAM)"
		symbols.add("TSLA")
		symbols.add("xxx")
		symbols.add("SAM")
		GetQuotesRequest quotesRequest = new GetQuotesRequest(symbols);

		when: "a request for a quote is made"
		quotesResponse = quotes.getQuotes(quotesRequest);

		then: "the quotes are returned for the valid symols (in alphabetical order)"
		quotesResponse.getQuotes().get(0).getSymbol() == "SAM"
		quotesResponse.getQuotes().get(1).getSymbol() == "TSLA"

	}
}

All sorts of classes were identified as missing after writing that first given-then-when test. Here are the GetQuotes interface, the request and response, and the implementation and entities that I used to pull the quotes from IEX.

GetQuotes interface

package com.scotthensen.portfolio.svc.usecases.getquotes;

public interface GetQuotes
{
	public GetQuotesResponse getQuotes(GetQuotesRequest request);
}

GetQuotesRequest

package com.scotthensen.portfolio.svc.usecases.getquotes;

import java.util.List;

import org.springframework.stereotype.Component;

import lombok.AllArgsConstructor;
import lombok.Data;
import lombok.NoArgsConstructor;

@Component
@Data
@NoArgsConstructor //(access = AccessLevel.NONE)
@AllArgsConstructor
public class GetQuotesRequest
{
	private List<String> symbols;
}

GetQuotesResponse

package com.scotthensen.portfolio.svc.usecases.getquotes;

import java.util.List;

import org.springframework.web.client.HttpClientErrorException;

import com.scotthensen.portfolio.svc.quote.Quote;

import lombok.Data;
import lombok.NoArgsConstructor;
import lombok.AllArgsConstructor;

@Data
@NoArgsConstructor
@AllArgsConstructor
public class GetQuotesResponse
{
	private List<Quote> quotes;
	private HttpClientErrorException httpException;
}

IexQuoteSvc implementation
Warning: This is still pretty crumby looking.

[This is a good example of how estimates for open-source-based development can go off the rails. I threw all that code above together in an hour or two and tested it with a single quote, which IEX returns as a single JSON object. It was easy-peasy. If I had to give an estimate based on that, I’d say give me a couple hours to build the basic get-quotes use case. But, when I replaced that quick test with a request to pull multiple quotes at once (something much more reasonable for tracking an entire portfolio), I ran into all sorts of problems. It took me three nights to figure out how that one line - Spring’s RestTemplate - maps nested LinkedHashMaps into an object. I’m still not happy with the solution, and of course I want to remove the if/else and try/catch blocks, but I’m kind of sick of messing with it right now. :) Hopefully, in a few days, my repo will have a better version of this class. If not… this is a good example of how tech debt is created, I guess. ]

package com.scotthensen.portfolio.svc.usecases.getquotes;

import java.util.HashMap;
import java.util.List;
import java.util.Map;
import java.util.stream.Collectors;

import org.springframework.core.ParameterizedTypeReference;
import org.springframework.http.HttpMethod;
import org.springframework.http.HttpStatus;
import org.springframework.http.ResponseEntity;
import org.springframework.web.client.HttpClientErrorException;
import org.springframework.web.client.RestTemplate;

import com.scotthensen.portfolio.svc.quote.Quote;


class IexQuoteSvc implements GetQuotes {

	private static final String IEX_BASE_URL      = "https://api.iextrading.com/1.0/stock/market/batch?symbols=";
	private static final String IEX_REQUEST_TYPES = "&types=quote";

	public GetQuotesResponse getQuotes(GetQuotesRequest request)
	{
		RestTemplate             restTemplate = new RestTemplate();
		GetQuotesResponse        response     = new GetQuotesResponse();
		HttpClientErrorException exception    = null;

		if (request == null || request.getSymbols() == null) {
			exception =
				new HttpClientErrorException(
						HttpStatus.BAD_REQUEST,
						"GetQuotesRequest must contain a symbol");
		}
		else
		{
			try
			{
				ParameterizedTypeReference<HashMap<String,IexQuote>> quotesMap =
						new ParameterizedTypeReference<HashMap<String,IexQuote>>() {};

				ResponseEntity<HashMap<String,IexQuote>> iexResponse =
					restTemplate.exchange(
						buildStringUrl(request),
						HttpMethod.GET,
						null,
						quotesMap);

				if ((iexResponse.getStatusCode() != HttpStatus.OK) || (iexResponse.getBody().isEmpty()))
				{
					exception =
						new HttpClientErrorException(
							HttpStatus.NOT_FOUND,
							"Symbol(s) provided in GetQuotesRequest were not found at IEX");

				}
				else
				{
					List<Quote> quotes =
						iexResponse.getBody().entrySet()
							.stream()
							.sorted(Map.Entry.<String, IexQuote>comparingByKey())
							.map(q -> new Quote(null,
											    q.getValue().getQuote().getSymbol(),
											    q.getValue().getQuote().getIexBidPrice(),
											    q.getValue().getQuote().getIexAskPrice()  )	)
							.collect(Collectors.toList());

					response.setQuotes(quotes);
				}
			}
			catch (HttpClientErrorException e)
			{
				exception =
					new HttpClientErrorException(
						HttpStatus.NOT_FOUND,
						"Symbol(s) provided in GetQuotesRequest were not found at IEX");
			}
		}
		response.setHttpException(exception);
		return response;
	}

	private String buildStringUrl(GetQuotesRequest request)
	{
		String urlSymbols = String.join(",", request.getSymbols());
		String url        = IEX_BASE_URL + urlSymbols + IEX_REQUEST_TYPES;

		return url;
	}

}

IexQuote

package com.scotthensen.portfolio.svc.usecases.getquotes;

import com.fasterxml.jackson.annotation.JsonIgnoreProperties;

import lombok.AllArgsConstructor;
import lombok.Data;
import lombok.NoArgsConstructor;

@Data
@NoArgsConstructor
@AllArgsConstructor
@JsonIgnoreProperties(ignoreUnknown = true)
public class IexQuote
{
	private IexQuoteDetails quote;

}

IexQuoteDetail


package com.scotthensen.portfolio.svc.usecases.getquotes;

import java.math.BigDecimal;

import com.fasterxml.jackson.annotation.JsonIgnoreProperties;

import lombok.AllArgsConstructor;
import lombok.Data;
import lombok.NoArgsConstructor;

@Data
@NoArgsConstructor
@AllArgsConstructor
@JsonIgnoreProperties(ignoreUnknown = true)
public class IexQuoteDetails
{
	private String     symbol;
	private String     companyName;
	private String     primaryExchange;
	private String     sector;
	private String     calculationPrice;
	private BigDecimal open;
	private BigDecimal openTime;
	private BigDecimal close;
	private BigDecimal closeTime;
	private BigDecimal high;
	private BigDecimal low;
	private BigDecimal latestPrice;
	private String     latestSource;
	private String     latestTime;
	private BigDecimal latestUpdate;
	private BigDecimal latestVolume;
	private BigDecimal iexRealtimePrice;
	private BigDecimal iexRealtimeSize;
	private BigDecimal iexLastUpdated;
	private BigDecimal delayedPrice;
	private BigDecimal delayedPriceTime;
	private BigDecimal extendedPrice;
	private BigDecimal extendedChange;
	private BigDecimal extendedChangePercent;
	private BigDecimal extendedPriceTime;
	private BigDecimal change;
	private BigDecimal changePercent;
	private BigDecimal iexMarketPercent;
	private BigDecimal iexVolume;
	private BigDecimal avgTotalVolume;
	private BigDecimal iexBidPrice;
	private BigDecimal iexBidSize;
	private BigDecimal iexAskPrice;
	private BigDecimal iexAskSize;
	private BigDecimal marketCap;
	private BigDecimal peRatio;
	private BigDecimal week52High;
	private BigDecimal week52Low;
	private BigDecimal ytdChange;
}

I think I am going to stop here. There are still additional use cases to develop, but I am going to switch to the front-end now. My plan is to build the basic web page to display a list of quotes. Once I get the front-end and back-end talking, I’ll give Selenium a try to test the web page, then I’ll circle back and finish the use cases.

My source code

Github: portfolio-service
